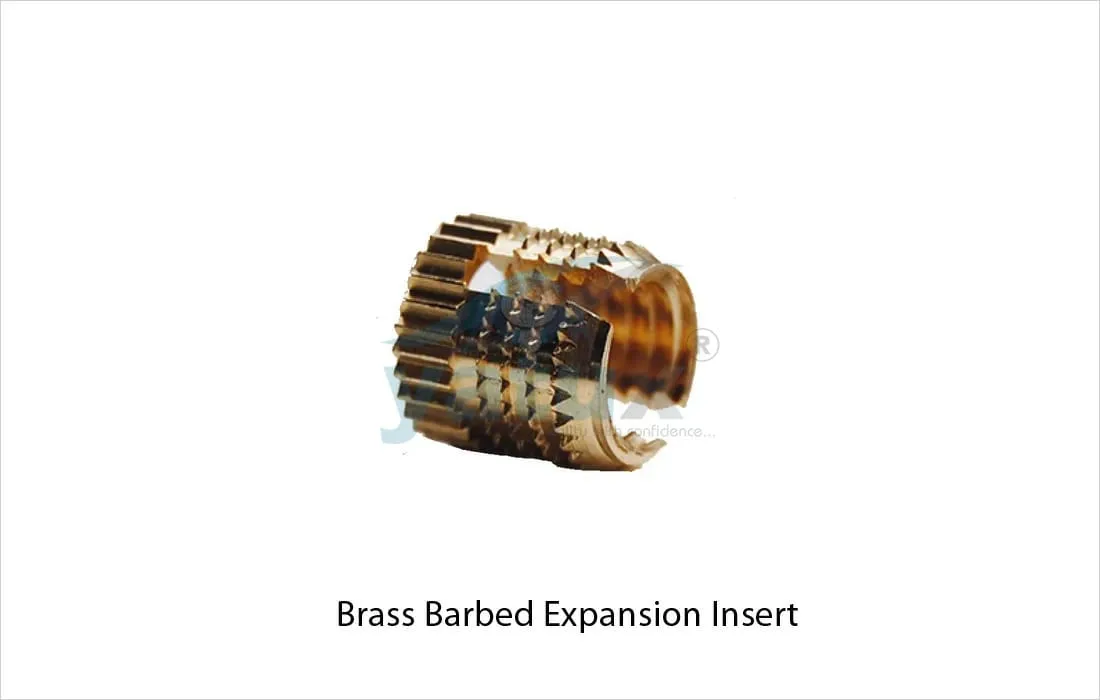

Brass Barbed Expansion Inserts
Manufacturer of
Brass Barbed Expansion Inserts
We put forth a well-tested range of Brass Barbed Expansion Inserts to our clients. This range is offered at industry leading prices to our clients. It is demanded for plastics industries, communication equipments, automotive industries, electrical & wiring device cases. We customize the entire range as per the specifics detailed by our clients.
| Thread Size |
Length (L) |
ØD | Pilot Hole Ø |
Pilot Hole Depth |
| M4 | 8.0 | 6.0 | 5.0 | 9.0 |
| M5 | 8.0 | 7.0 | 6.0 | 9.0 |
| M6 | 9.5 | 9.0 | 8.0 | 11.0 |
| M8 | 10.0 | 10.0 | 9.0 | 11.0 |
| M10 | 13.0 | 12.0 | 11.0 | 14.0 |
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
| Metal | Brass / Copper Alloy |
| Brass Barbed Expansion Insert Rod | Casting / Extrusion |
| Packaging Details |
Bag Packaging, Innear Plastic Packing, Carton Packaging, Wooden Carton Packing |
| Finishing & Coating |
Natural, Golden Finish, Silver Finish , Nickle Platted, Chrome Platted, Tin Plated, Any coating as per customer specifications |
Dimension / Length / Size :
- Begins from M1.5 or equivalent threads and up to any size as per Custom Designs and requirements
Material
- Free Cutting Brass IS 319 Type (l)
- Free Cutting Brass as per BS 249 Type (I)
- Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc
- Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
- High Grade Free Cutting Brass.
- Any Special Brass Material Composition as per customer’s requirement
Shapes
- Round Insert
- Hexagonal Insert (Hex Insert)
- Double Hex Insert
- Square Insert
- Any Special Brass insert shape as per customer’s requirement
